Apple has introduced Memory Integrity Enforcement (MIE), a system-wide security feature designed to crush one of the most persistent threats to iPhone users—that of Spyware.
The company describes MIE as “the most significant upgrade to memory safety in the history of consumer operating systems.” Built on years of hardware and software co-design, it combines enhanced silicon protections in the A19 chip family with new allocator designs and language-level safeguards. The result is what it calls a first-of-its-kind, always-on defense intended to disrupt the exploit chains mercenary spyware vendors rely on.
Closing the Memory Safety Gap
Memory corruption remains a core technique in high-end attacks, be it supply chain or spyware. Exploits such as buffer overflows and use-after-free bugs allow attackers to hijack execution flow, inject malicious payloads and bypass sandboxing. While iPhones have not faced malware outbreaks, Apple has acknowledged time and again that sophisticated spyware continues to target high-value users, often through these vulnerabilities.
Central to MIE’s innovation is Enhanced Memory Tagging Extension (EMTE). This is Apple’s refined version of ARM’s Memory Tagging Extension specification. In EMTE, each small block of memory is assigned a random “allocation tag,” and every pointer referencing that memory carries a corresponding “pointer tag.” On every load or store, the CPU checks the two. If they don’t match, the process crashes immediately. This transforms many subtle memory corruption bugs into outright failures, breaking exploit reliability.
Unlike ARM’s original implementation, Apple’s EMTE enforces synchronous, always-on checking. That means a mismatch is caught the instant it occurs, closing race conditions where asynchronous checks could be bypassed.
Software-Hardware Co-Design
MIE goes beyond tagging. Apple in it its blogpost said it integrated MIE with type-aware allocators—kalloc_type for kernel memory and xzone malloc for userland—that compartmentalize objects by type. This reduces the chance that a dangling pointer from one object type will validly reference another. Together with Apple’s memory-safe language Swift, these changes raise the baseline of memory safety across the platform.
A novel addition is Tag Confidentiality Enforcement, a mechanism that prevents tags from leaking through side channels or speculative execution attacks. This matters because allocation tags are low entropy—commonly four bits—and without confidentiality, attackers could probe or brute-force their way into bypassing protections.
Apple tested MIE against real-world spyware exploit chains observed over the past several years. According to the company, the system consistently blocked primitive bugs, forcing exploit developers to rethink entire chains instead of swapping in new memory vulnerabilities.
A persistent challenge in memory tagging is balancing security with performance. Apple claims the A19 and A19 Pro chips were architected to support EMTE at scale, allowing synchronous checks to run with negligible performance cost. Early reports suggest that user-facing impact is minimal, though independent benchmarks will provide a clearer picture.
Apple’s MIE vs Android’s MTE
Apple is not the first to deploy memory tagging. Google introduced MTE support with the Pixel 8 in 2023, and the security-focused GrapheneOS project deployed it in production about a month after the Pixel 8 launch.
According to GrapheneOS developers, MTE has been running in the kernel and nearly the entire base OS, with support extending to some third-party apps. Users can also opt-in to system-wide enforcement.
Android supports both synchronous and asynchronous modes, with many devices opting for asynchronous checks to reduce performance overhead. That choice, while practical, introduces race conditions that attackers can exploit. MTE on Android has also largely been per-app or developer opt-in, leading to fragmented adoption across the ecosystem, Apple argues. Some Pixel devices expose stronger “Advanced Protection” options, but system-wide enforcement remains inconsistent.
While Apple frames MIE as a step-change innovation, GrapheneOS notes ARM’s baseline MTE was already considered a “game changer” in memory safety by the Android ecosystem. The technology has also gone through several revisions, with FEAT_MTE4 marking the fourth generation of improvements. These revisions aim to address known side-channel leakage issues, which have been a research focus for ARM engineers.
However, in contrast, Apple’s MIE is system-wide by default. It protects the kernel and more than 70 userland processes, regardless of whether developers explicitly enable it. Combined with type-aware allocators and tag confidentiality, it closes gaps researchers have identified in baseline MTE deployments, such as tag reuse and side-channel leakage.
GrapheneOS developers argue that Apple’s criticism of MTE’s early side-channel limitations overlooks Apple’s own track record. Apple’s chips, they note, have suffered from more severe side-channel vulnerabilities than ARM’s Cortex cores, often leaking user data directly. In their view, downplaying those issues while pointing to MTE’s side-channel concerns amounts to selective framing.
Raising the Cost of Exploitation
Apple’s move shows shifting tides. A move away from patching individual bugs to systemic resilience. With MIE, many classes of memory corruption bugs become dead ends rather than viable exploit primitives. That doesn’t eliminate memory safety issues outright—tags are still low entropy and creative attackers may find ways to bypass confidentiality—but it dramatically increases the cost of exploitation.
For organizations tracking mercenary spyware or nation-state threats, MIE and MTE signals a harder environment for adversaries to weaponize iOS and Android vulnerabilities.

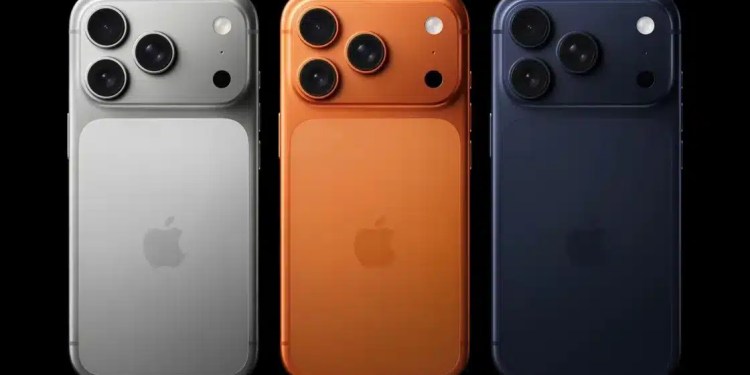

As Apple rolls MIE into every new device running on the A19 family, which are now going to be seen in the latest iPhone 17 devices and beyond, spyware developers may not be out of work, but their job just got much harder.
